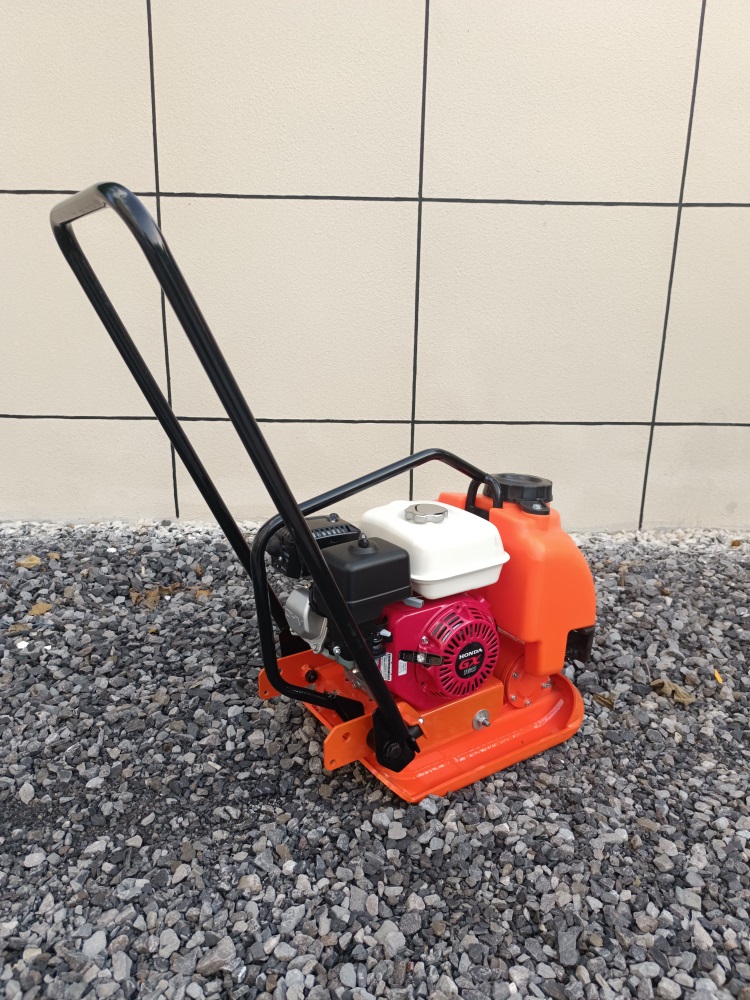

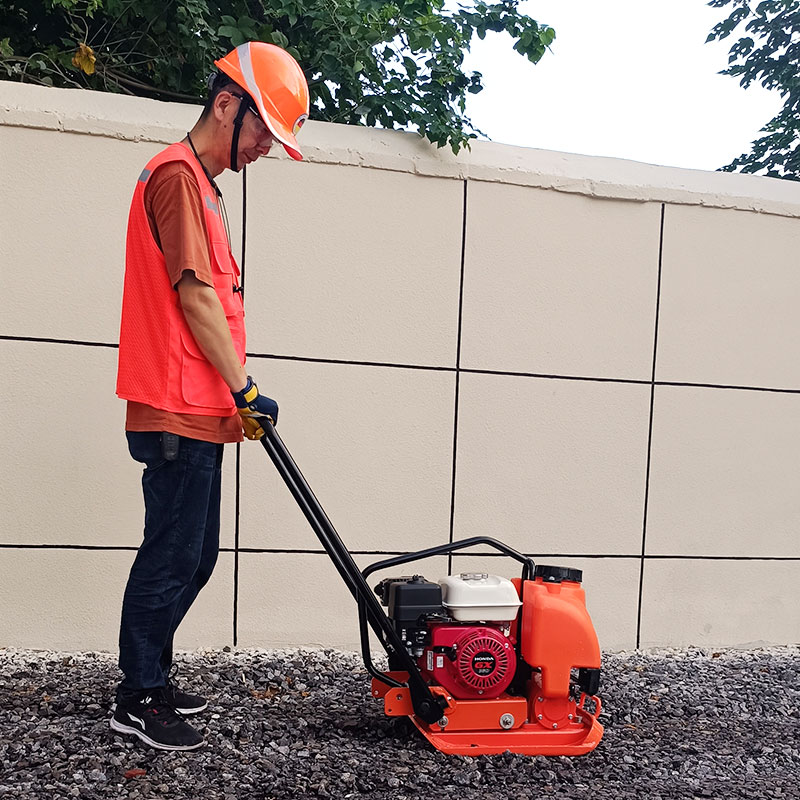

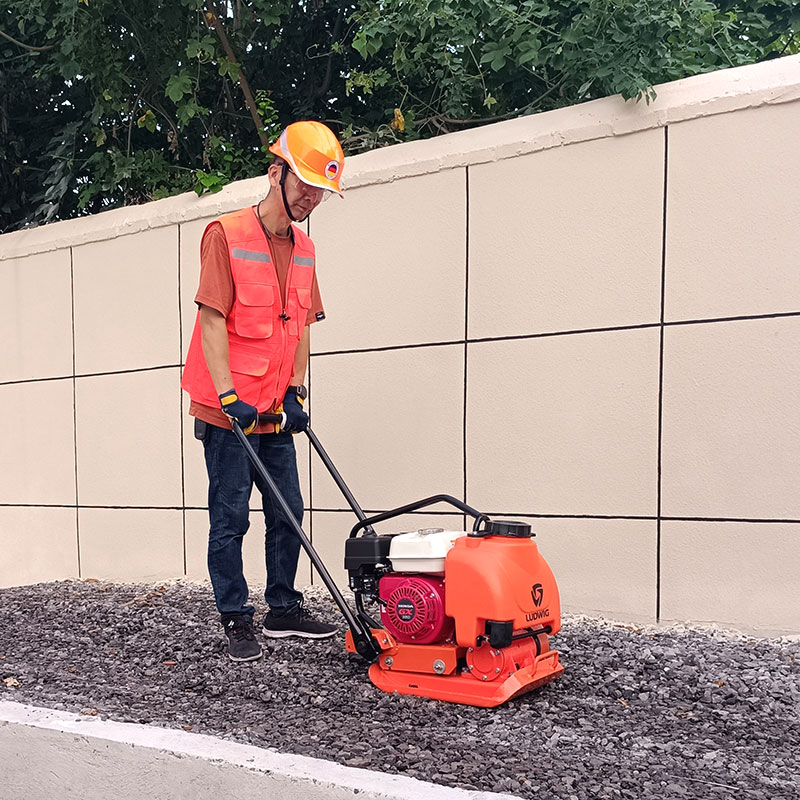

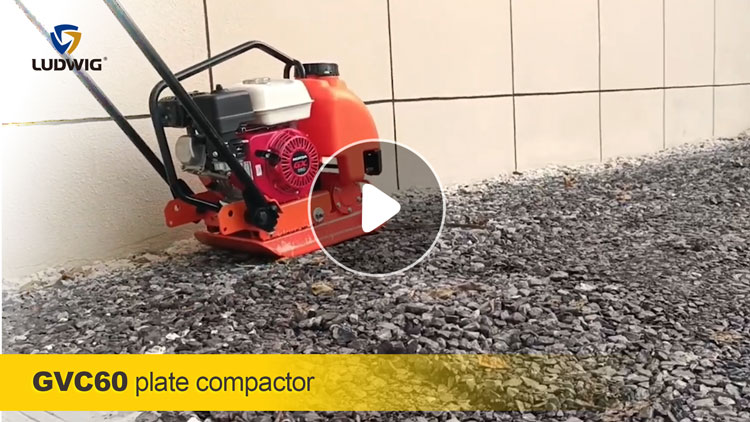

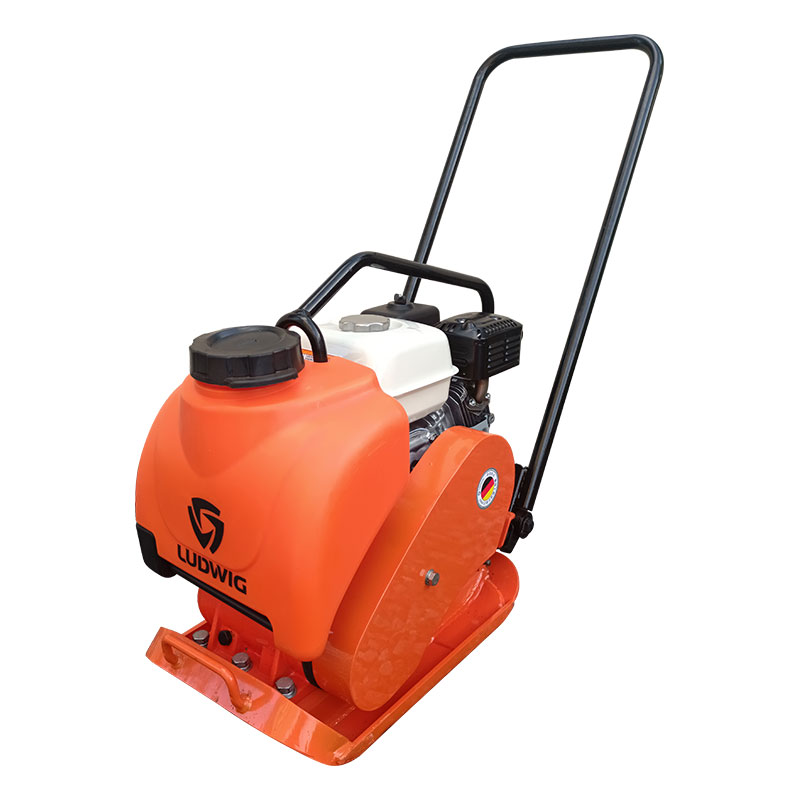

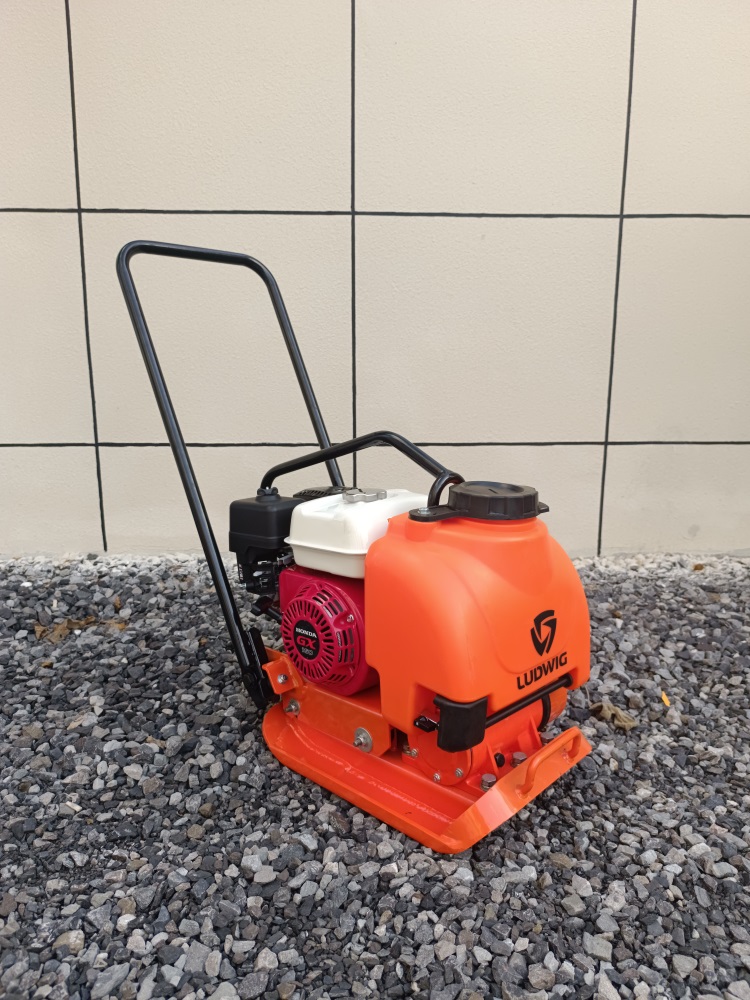

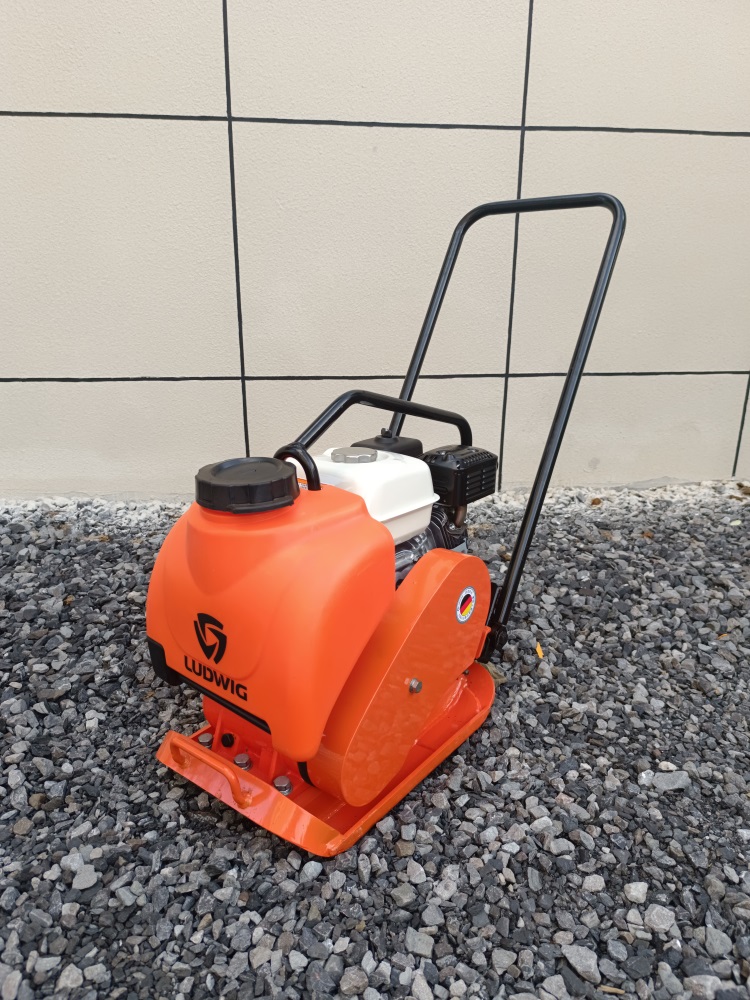

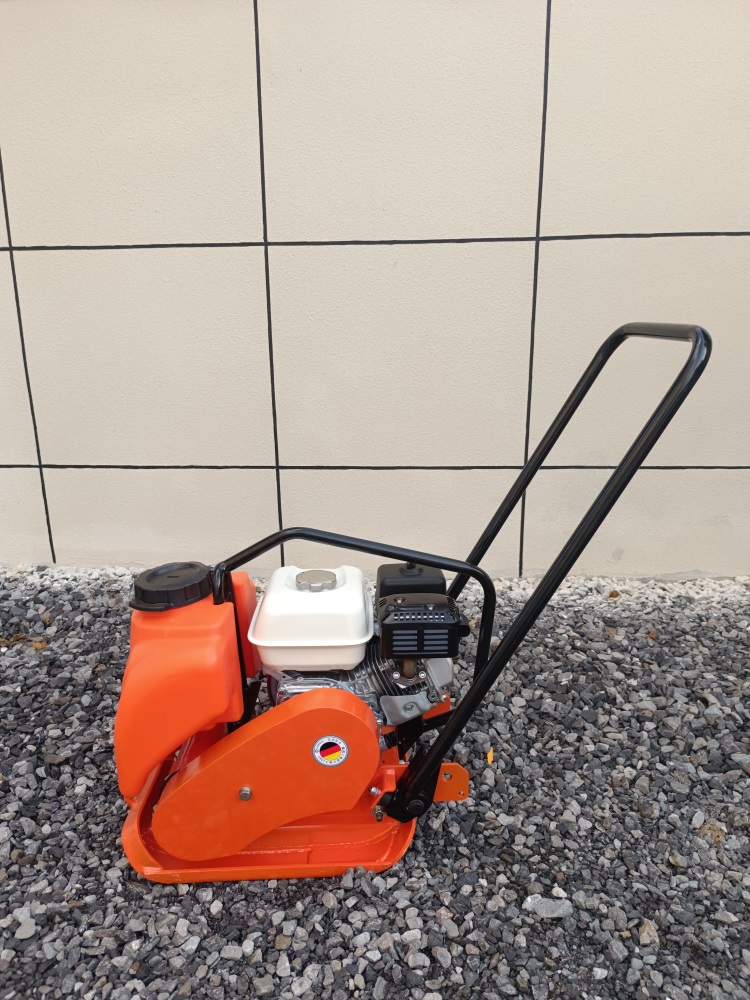

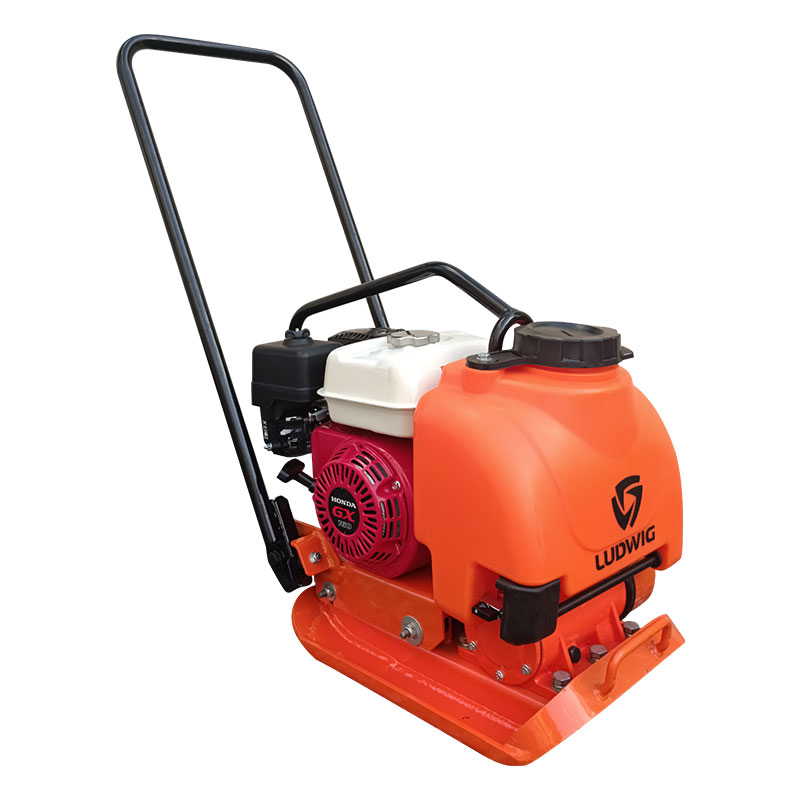

GVC60

  • Product details







Features:
-Streamlined design, faster walking speed and greater climbing ability.
-Bottom plate is made of double-layer steel plate with self-cleaning function.
-One-piece pressed bottom plate with raised edge leaves no compaction marks.
-The handle with anti-vibration rubber blocks reduces the fatigue effectively.

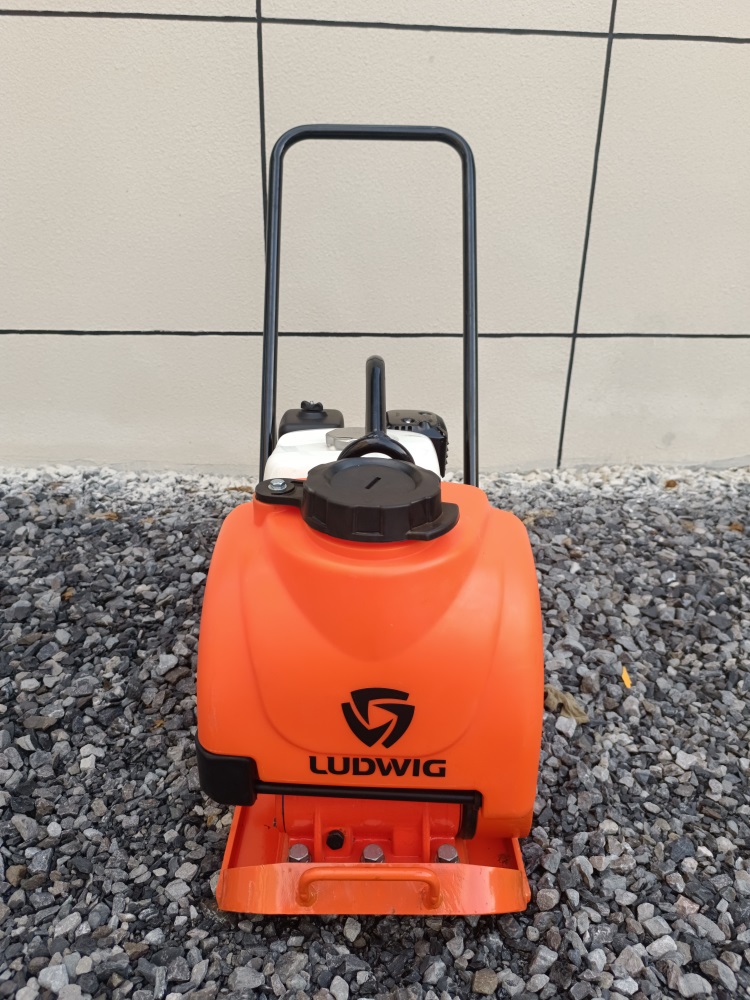

-Detachable large water tank and ergonomically designed water sprinkling tube.
-Optional with wheel set for easier maneuverability

Model GVC60 GVC70 GVC80 GVC90
Plate size mm 500×350 510×420 570×450 525×500
Vibrating frequency Hz/v.p.m 93(5,600) 93(5,600) 93(5,600) 100(6000)
Centrifugal force(max) kN/kgf 10.1(1030) 12.0(1220) 13.7(1400) 15.0(1530)
Max.traveling speed m/min 25 25 25 25
Max.limited grade ability % 35 35 35 35
Compaction depth mm 230 230 230 280
Weight kg 68 75 80 92
Packing size mm 680×370×590 925×580×865 680×460×590 1100×560×825
Engine manufacturer HONDA HONDA HONDA HONDA
Engine model GX160 GX160 GX160 GX160
Max.output hp 5.5 5.5 5.5 5.5
